GM-EBL02-WP

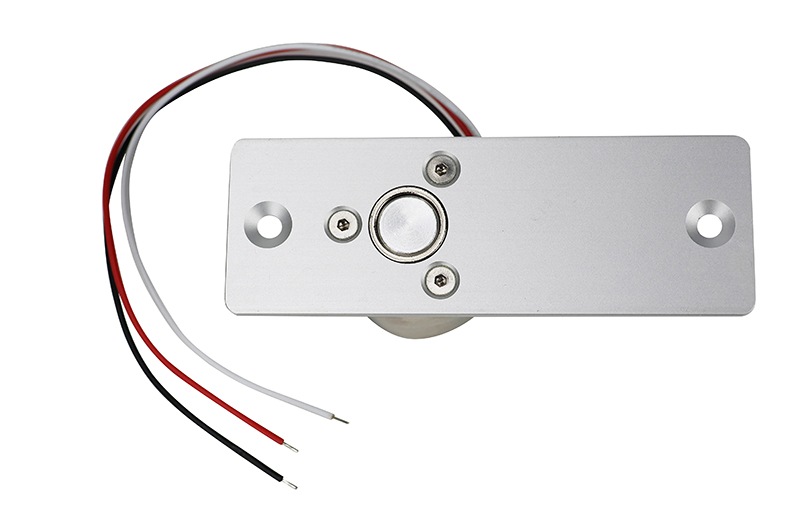

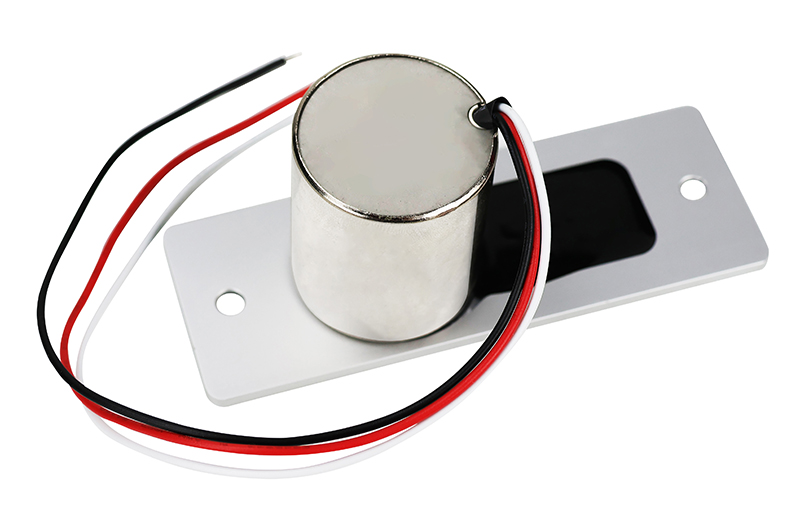

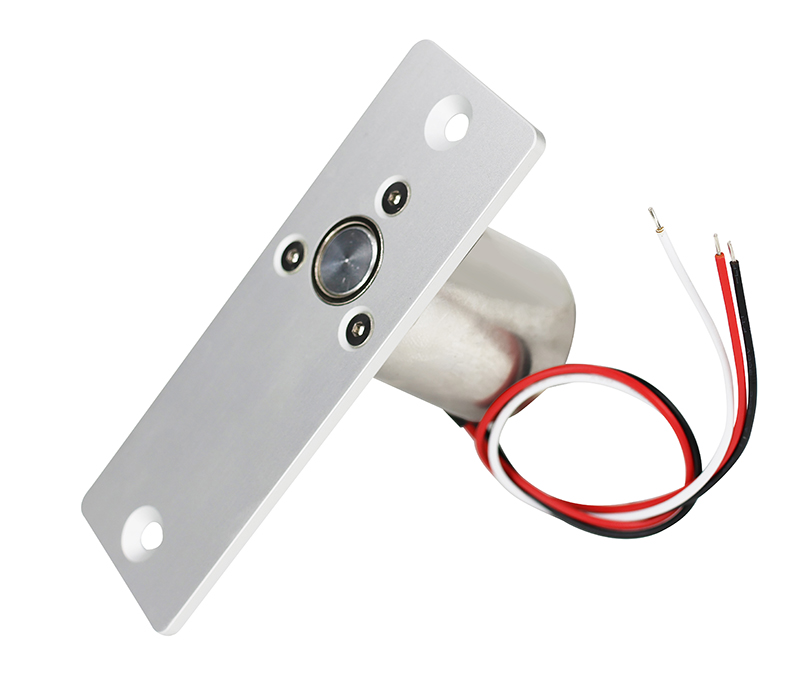

Electric Bolt Lock(T Type, low temperature, 2 wires, waterproof)
- Detail of Products
Electric Bolt Lock(T Type, low temperature, 2 wires, waterproof)
Lock Body Size: 100 x 35 x 39mm
Lock Core Size: Diameter: 12mm, extension length: 13mm
Input Voltage: 12VDC or 24VDC
Working Current: 200mA
Time Delay: 0.5 second, 1.5 second, 3 second, or 6 seconds
Applicable Door: Wooden Door, Glass Door, Fire Proof Door, Metal Door
Working Way: Power Off→Unlocking, Power On→Locking
Wire Core Materials: Pure Copper
Panel Material: Alluminum Alloy
Lock Body Material: Alluminum Alloy
Work in low temperature
Waterproof: IPx5, can be installed in outdoor area.
Weight: 0.18kg
