GM-EBL04-1
Electric Bolt Lock(Low Temperature, 4 wires)
- Detail of Products

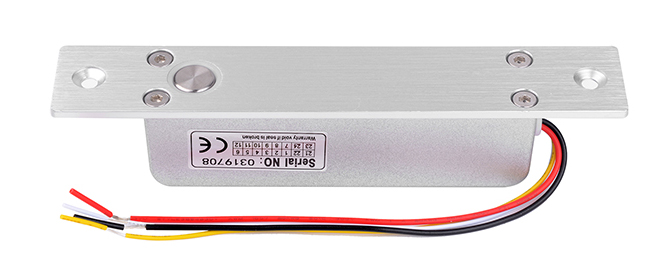

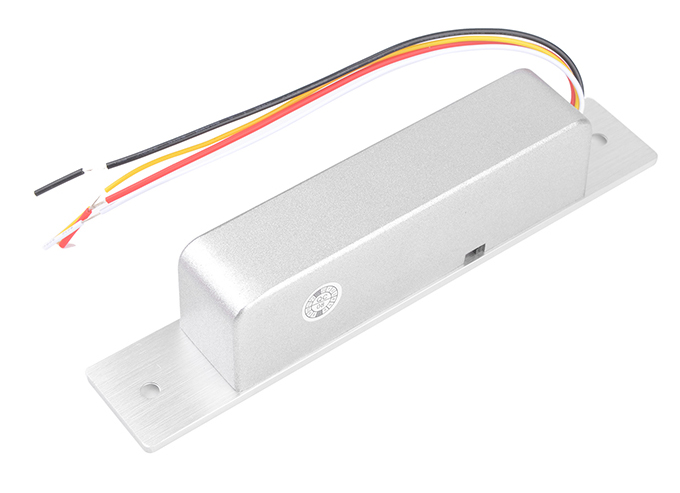

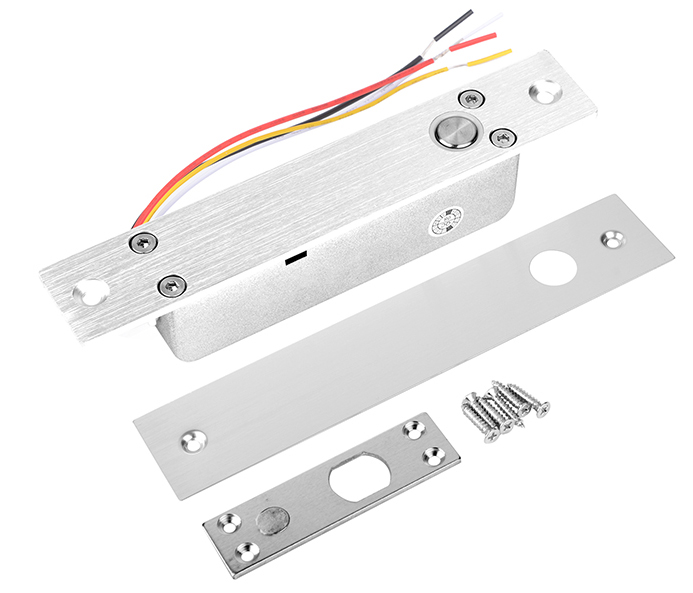

Electric Bolt Lock(Low Temperature, 4 wires)
Lock Body Size: 170 x 31 x 34mm
Lock Core Size: Diameter: 12.5mm, extension length: 16mm
Input Voltage: 12VDC / 24VDC
Working Current: 150mA
Time Delay: 0 second, 3 seconds, or 6 seconds
Applicable Door: Wooden Door, Glass Door, Fire Proof Door, Metal Door
Working Way: Power Off→Unlocking, Power On→Locking
Wire Core Materials: Pure Copper
Panel Material: Alluminum Alloy
Lock Body Material: Alluminum Alloy
Work in low temperature
With door status feedback
Weight: 0.37kg
