GM-EBL04-3

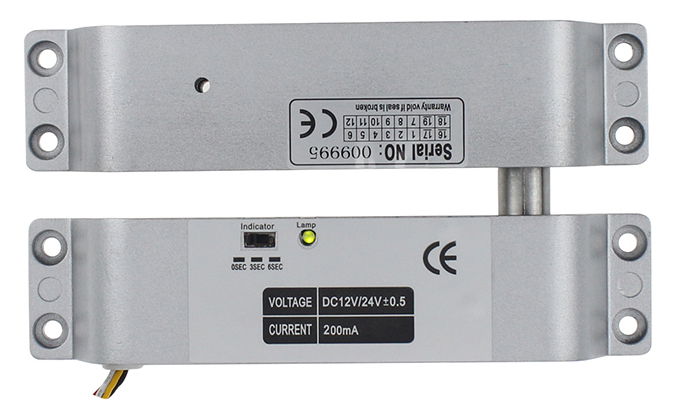

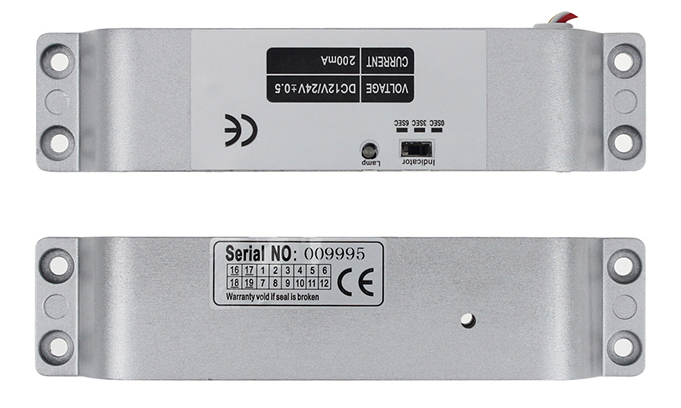

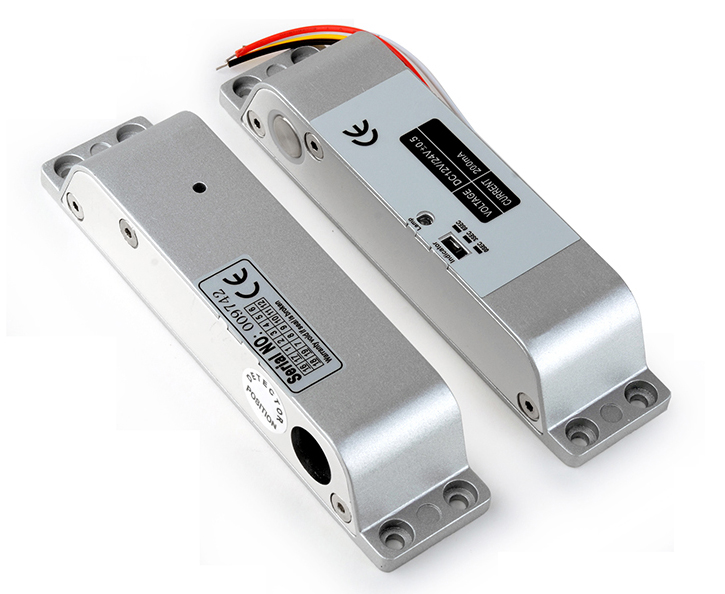

Electric Bolt Lock(Surfaced Mounted, Low Temperature, 4 wires)
- Detail of Products
Electric Bolt Lock(Surfaced Mounted, Low Temperature, 4 wires)
Lock Body Size: 150 x 34 x 28mm
Lock Core Size: Diameter: 12.5mm, extension length: 15mm
Input Voltage: 12VDC / 24VDC
Working Current: 200mA
Time Delay: 0 second, 3 seconds, or 6 seconds
Applicable Door: Wooden Door, Glass Door, Fire Proof Door, Metal Door
Working Way: Power Off→Unlocking, Power On→Locking
Wire Core Materials: Pure Copper
Lock Body Material: Alluminum Alloy
Work in low temperature
With door status feedback
Weight: 0.5kg
