GM-EBL05-2

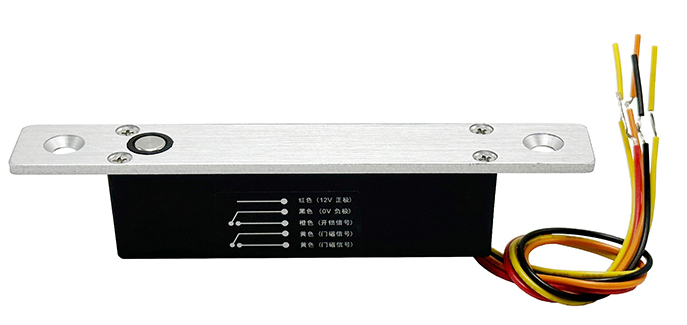

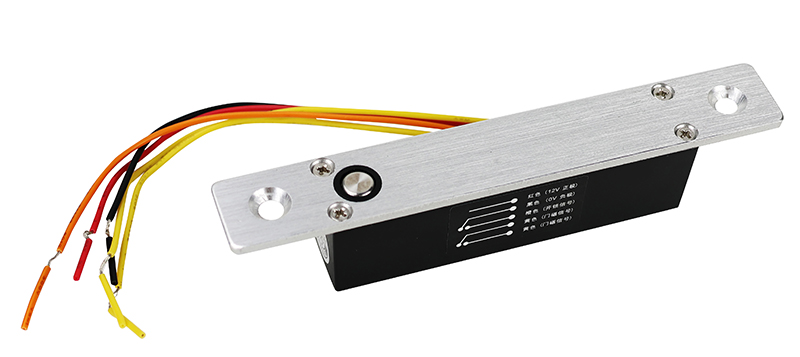

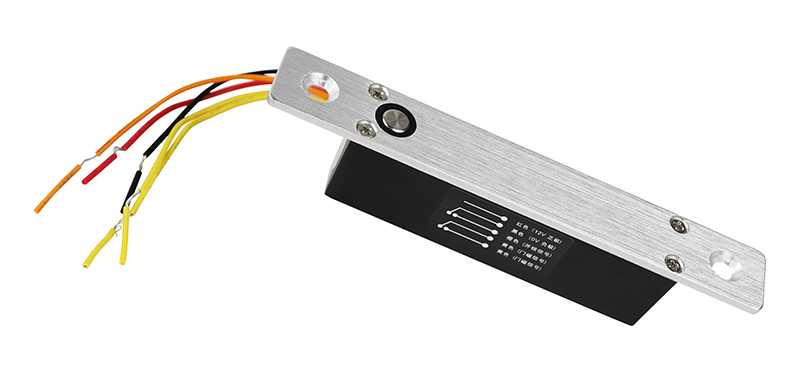

Mini Electric Bolt Lock(Low Temperature, 5 wires)
- Detail of Products
Mini Electric Bolt Lock(Low Temperature, 5 wires)
Lock Body Size: 120 x 18 x 23.5mm
Embedded Size: 80 x 18 x 21mm
Lock Core Size: Diameter: 7mm, extension length: 9mm
Input Voltage: 12VDC / 24VDC
Working Current: 150mA
Applicable Door: Wooden Door, Glass Door, Fire Proof Door, Metal Door
Working Way: Power Off→Unlocking, Power On→Locking or Power Off→locking, Power On→Unlocking
Wire Core Materials: Pure Copper
Panel Material: Alluminum Alloy
Lock Body Material: Alluminum Alloy
Work in low temperature
With door status feedback
Weight: 0.12kg
