GM-EBL05-K
Electric Bolt Lock(Low Temperature, with keys, 5 wires)
- Detail of Products

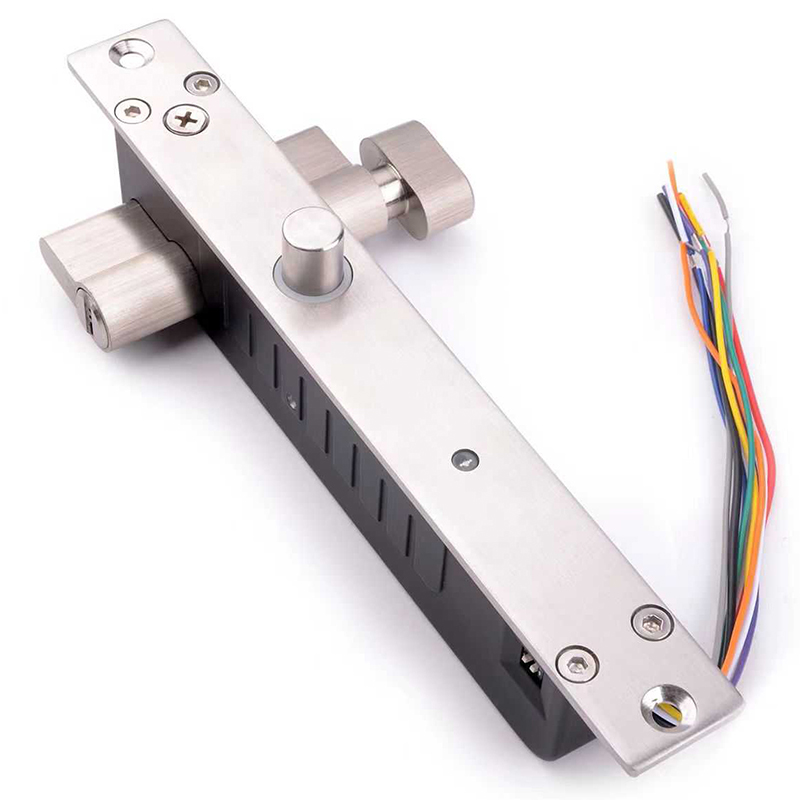

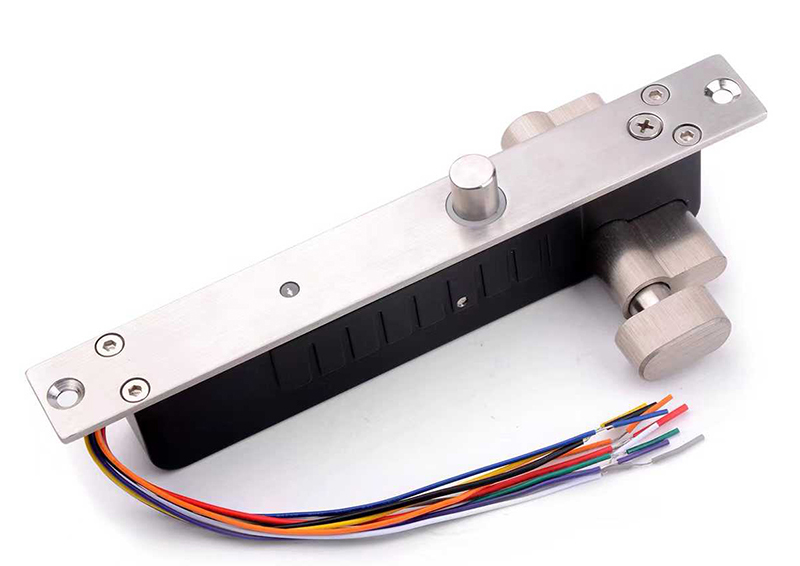

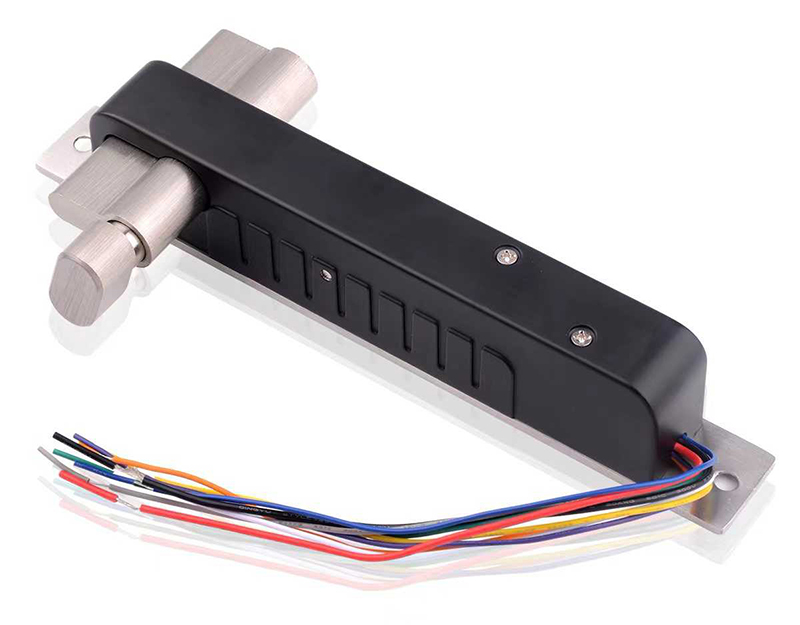

Electric Bolt Lock(Low Temperature, with keys, 5 wires)
Lock Body Size: 210 x 26.5 x 37mm
Lock Core Size: Diameter: 15mm, extension length: 16mm
Lock Tongue Size: 70mm
Input Voltage: 12VDC
Working Current: 450mA
Time Delay: 0 second, 3 seconds, or 6 seconds
Applicable Area: Prisons, Residential Areas, Office Buildings, Shops
Working Way: Power Off→Locking, Power On→Unlocking
Wire Core Materials: Pure Copper
Panel Material: Alluminum Alloy
Lock Body Material: Alluminum Alloy
Work in low temperature
With door status feedback
Weight: 0.8kg
