GM-EBL06-1 - Shenzhen Gomeit Co., Limited

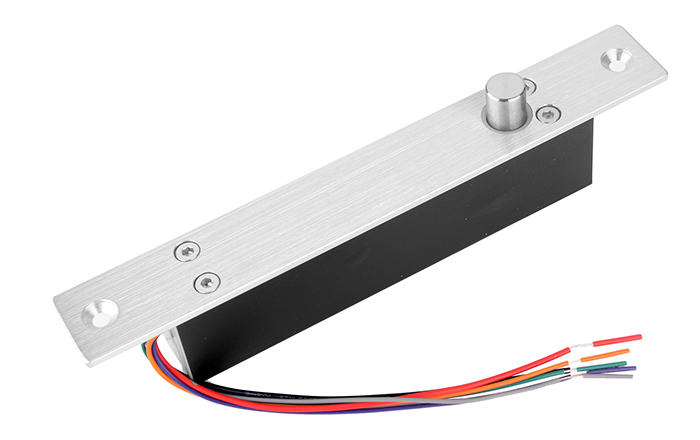

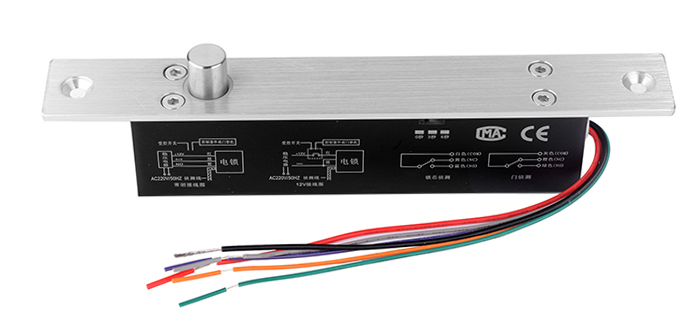

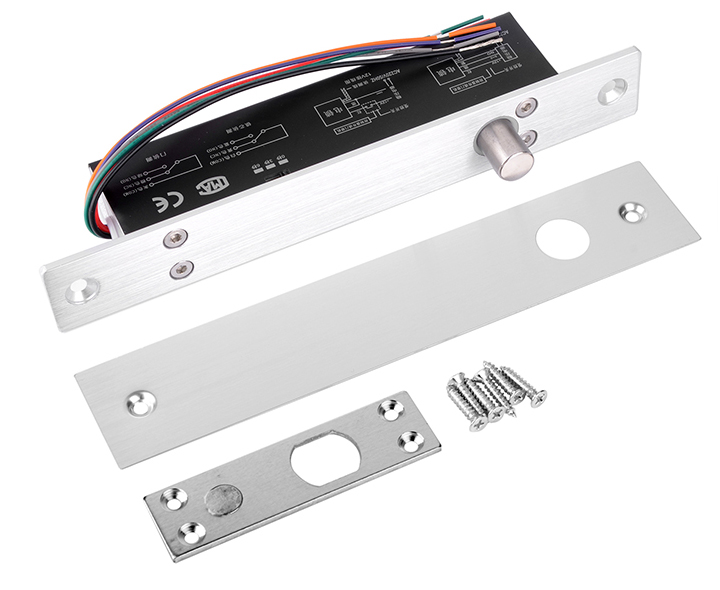

Electric Bolt Lock(Narrow Board, Low Temperature, 6 wires)

Lock Body Size: 200 x 28 x 39mm

Lock Core Size: Diameter: 12.5mm, extension length: 16mm

Input Voltage: 12VDC / 24VDC

Working Current: 150mA

Enduring Grip Force: 1000kg

Time Delay: 0 second, 3 seconds, or 6 seconds

Applicable Door: Vending Machines, Refrigerators, Safes

Working Way: Power Off→locking, Power On→Unlocking

Wire Core Materials: Pure Copper

Panel Material: Alluminum Alloy

Lock Body Material: Alluminum Alloy

Work in low temperature

With door status feedback(can be ODM)

Weight: 0.44kg
