GM-EBL07-S
Silent Electric Bolt Lock(Narrow Board, Low Temperature, 7 wires)
- Detail of Products

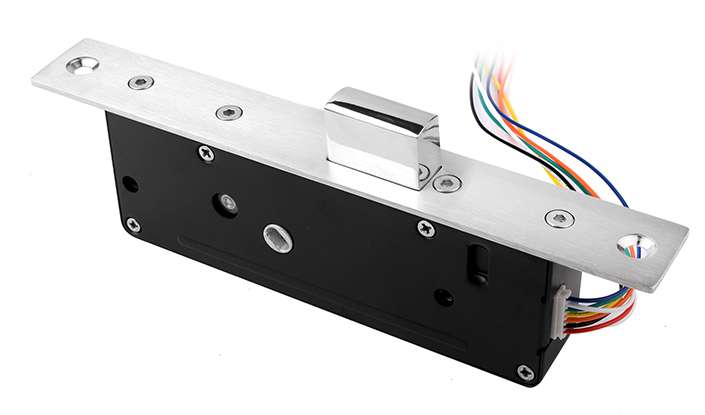

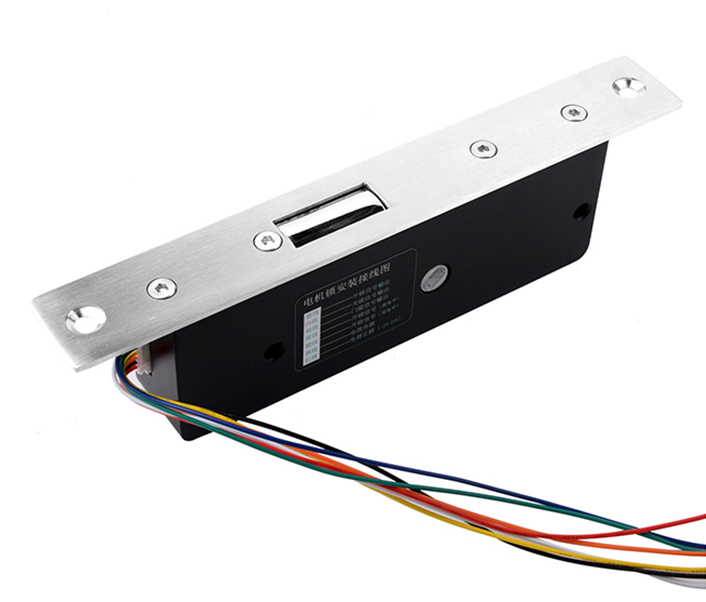

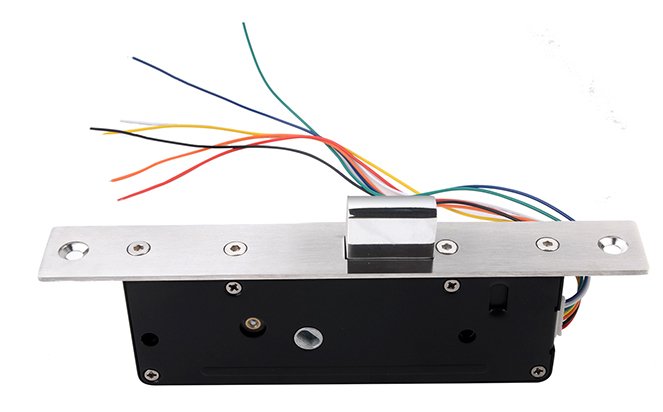

Silent Electric Bolt Lock(Narrow Board, Low Temperature, 7 wires)
Lock Body Size: 200 x 28 x 50.5mm
Lock Core Size: Width: 3mm, extension length: 21mm
Embedded Size: 145 x 26.5 x 48mm
Input Voltage: 12VDC / 24VDC
Working Current: 300mA
Time Delay: 0 second, 3 seconds, or 6 seconds
Applicable Door: Elevators, Prisons, Office Buildings
Working Way: Power Off→locking, Power On→Unlocking
Equipped with clutch motor drive, high/low level and door magnetic force disabled
Wire Core Materials: Pure Copper
Panel Material: Alluminum Alloy
Lock Body Material: Alluminum Alloy
Work in low temperature
With door status feedback(NO/COM)
Weight: 0.56kg
