GM-EBL08

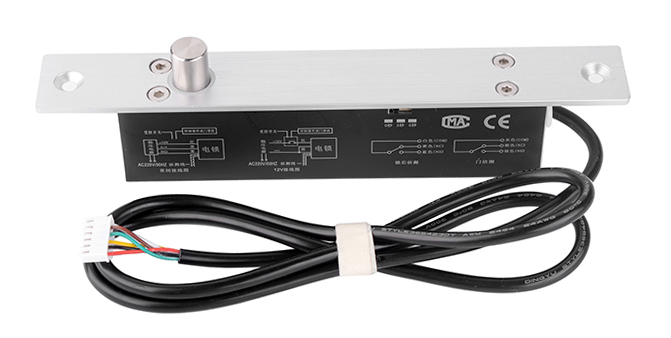

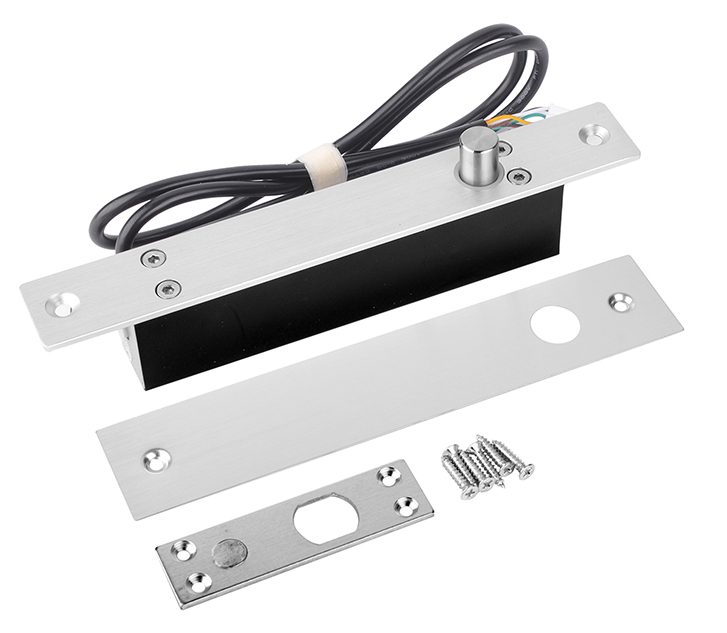

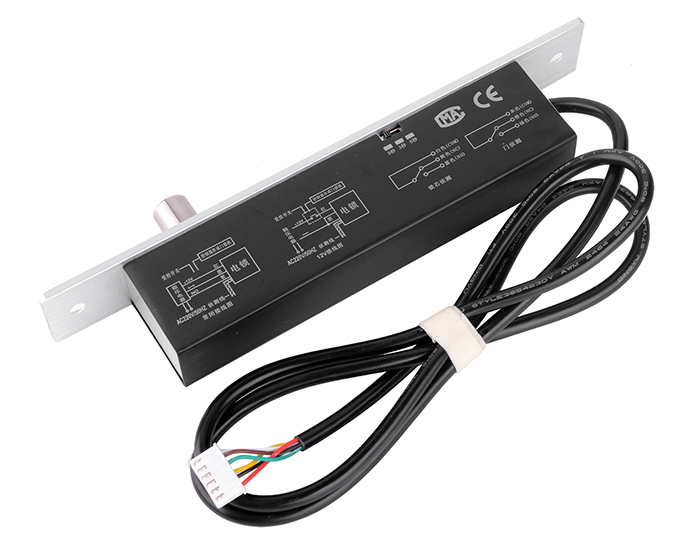

Electric Bolt Lock(Narrow Board, Low Temperature, 8 wires)
- Detail of Products
Electric Bolt Lock(Narrow Board, Low Temperature, 8 wires)
Lock Body Size: 200 x 28 x 39mm
Lock Core Size: Diameter: 12.5mm, extension length: 16mm
Input Voltage: 12VDC / 24VDC
Working Current: 150mA
Time Delay: 0 second, 3 seconds, or 6 seconds
Applicable Door: Vending Machines, Refrigerators, Safes
Working Way: Power Off→locking, Power On→Unlocking
Wire Core Materials: Pure Copper
Panel Material: Alluminum Alloy
Lock Body Material: Alluminum Alloy
Work in low temperature
With door status feedback(can be ODM)
Weight: 0.5kg
